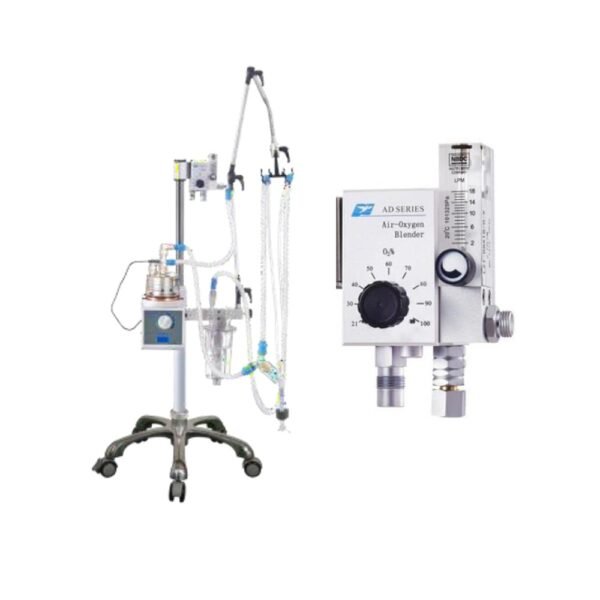

CPAP Pressure pigeon(AD-I)

Description

Technical Specifications:

• Model: AD-I
• FiO₂ (Oxygen Concentration): 21% – 100%
• Flow Rate: 1 – 15 L/min
• CPAP Pressure:
  • 0.3 – 1.0 kPa
  • Equivalent to 3 – 10 cmH₂O
• Noise Level: < 45 dB(A)
• Power Supply:
  • 220V / 110V
  • 50–60 Hz
• Gas Source Pressure:
  • 0.3 – 0.4 MPa
  • Equivalent to approximately 3 – 4 bar
• Alarm System:
  • Activated when the gas supply pressure difference exceeds 0.1 MPa

🔹 Operational Notes:

• Utilizes a Bubble CPAP system with manual pressure adjustment via water column
• Suitable for neonatal respiratory support
• Simple design and easy operation
